The instrumented ball source geometry is at present a simplified
version of the geometry of the existing Li source.
Each region consists of the following:
Region | Priority | Description | No. of | Media |
Primitives | ||||
261 | 561 | ![]() |
2 | Stainless steel |
262 | 562 | ![]() |
1 | Air |
263 | 563 | Dummy overwritting vol | 1 | Stainless steel |
271 | 571 | Bottom flange | 1 | Stainless steel |
281 | 581 | Instrumented top portion | 1 | Stainless steel |

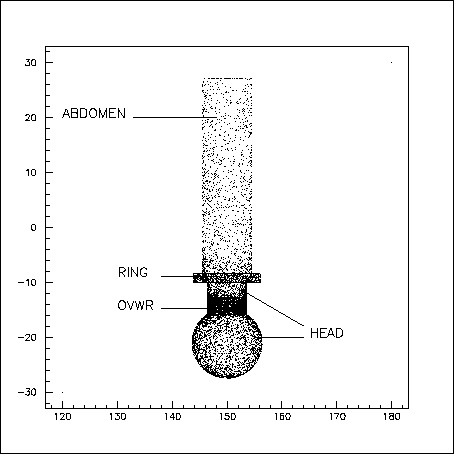

The geometry of the instrumented ball source is displayed in Figure 12.4.
|
The orientation of the primitives relative to each other has been set in the respective GEDS banks. Therefore, it is not necessary for the user to change the rotational matrix and the translational vector in the GEDS banks. In fact, the users are urged not to change any of the entries in any of the GEDS banks for this source.
To enable this source, the enable flag in each of the GEDS banks must be turned on. There is a command file calibration_8li_inst_ball.cmd to perform this task.
It is possible to move the source inside the DO volume. To accomplish
this task, one needs at the moment to set the translational vector
and rotational matrix for ALL the source regions.
The default for the rotational matrix
is the 3
3 unit matrix and the default setting for the translational
vector in the GEDP banks is a null vector. The user can make the necessary
transformations in the calibration_8li_inst_ball.cmd command file.
The source may be operated into the DO, the H
O,
the chimney inner region (ACRC_IVL), the PMT panel zone (PAN_ZONE),
the PMT empty hex cells (HEX) and between PMT panels (ABS_SKIRT).
The umbilical and manipulator weight code have not been altered yet to deal with the instrumented ball source geometry.
