Primitives

• This must not modify the xCONS nemory (e.g. by requesting titles) because it may be passed sections of titles banks which might be invalid if memory relocation occurred. This rule should be accademic; the primitive will be passed all required information.

• Calling sequence:

  call gep_* ( irq_typ, iprm_typ, iprm_opr, isrf_base,
                                    prm_data, xyz_de, uvw_de )


  Parameters (all input only)




  irq_typ 		  Request type: see mnemonics Request Types (will


  only be _NEXT, _NEAR or _PICK).


  iprm_typ 		  Primitive type: see mnenomics Primitive Types.


  iprm_opr 		  Primitive operation: see mnemonics flags.


  isrf_base 		  Base number for surfaces: add to internal surface


  number before storing in gep_current.inc


  prm_data 		  Primitive data: see Companion/Titles Banks/GEDS


  xyz_de 		  Particle position in detector element coordinates


  uvw_de 		  Particle direction cosines in detector element coordinates.




• Specification:-
  1. If debugging, check parameters:-

     *IF GE_DEBUG THEN

       Check request type, primitive type and operation.
       As far as reasonable, check primitive data.

     *ENDIF


  2. Use data for ge_current.inc as appropriate for current task.

  3. For request type:-

     KGE_NEXT

     find all boundary intersections (positive and negative) with current point and direction. Find also the surface numbers and boundary normals of these intersections.

     KGE_NEAR

     find nearest boundary using sign convention: -ve if inside primitive and +ve if outside. For complex shapes finding the exact distance to the nearest boundary can be very time consuming and isn't necessary, all that is required is that the sign be correct and that the distance given is not an overestimate. So an underestimate is acceptable and is often far easier to calculate.

     KGE_PICK

     select point randomly within primitive.

     Store results in gep_current.inc and then call boundary manager:-

     call geb_add_gep( irq_typ, iprm_opr )


Notes

1. The code can ignore the value of iprm_opr but the boundary manager needs to know if ORing or NOTing.

2. Adding the base number to the internal surface number ensures that each surface in the detector element is unique.

The following section lists the primitives available and their characteristics. The data words for each refer to the primitive data section of a GEDS bank and the location of the origin of the primitive coordinate system is also specified. On the diagrams the origin is marked by a cross within a circle, the surface numbers (used within the geometry code) by S1, S2 etc. and the lengths and angles corresponding to data words by simple numbers. See section 13 for a set of formulae that underpin the implimentation of these primitives.

     Sphere




Filename:- 		  gep_sphere.for


Data Words:- 		  1 Relative volume


2 Radius


Origin:- 		  At the centre of the sphere

Usage:- The two surfaces of the acrylic vessel or , if acrylic tiles are activated then spheres form the boundaries of the glue in which the tiles are embedded.

Notes:- None needed

     Cylinder




Filename:- 		  gep_cylinder.for


Data Words:- 		  1 Relative volume


2 Radius


3 Half the height


Origin:- 		  At the centre of the cylinder

Usage:- The acrylic chimney, belly ropes and assorted calibration sources.

Notes:- None needed.

     Elliptical Cylinder




Filename:- 		  gep_ellip_cylinder.for


Data Words:- 		  1 Relative volume


2 Length of the X semi-axis


3 Length of the Y semi-axis


4 Half the height


Origin:- 		  At the centre of the elliptical


cylinder

Usage:- The rope grooves in the belly plates.

Notes:- None needed

     Block




Filename:- 		  gep_block.for


Data Words:- 		  1 Relative volume


2 Half the length of the X side


3 Half the length of the Y side


4 Half the length of the Z side


Origin:- 		  At the centre of the block

Usage:- The rope grooves in the belly plates.

Notes:- None needed

     Octahedron




Filename:- 		  gep_octahedron.for


Data Words:- 		  1 Relative volume


2 Length from centre to apex


in Z direction


3 Tangent of angle between


XY plane and plane faces


Origin:- 		  At the centre of the octahedron

Usage:- The bevelled sides of the belly plates.

Notes:- None needed

     Half Torus




Filename:- 		  gep_half_torus.for


Data Words:- 		  1 Relative volume


2 Radius of the circular


cross-section


3 Major radius to the centre


of the circular cross-section


Origin:- 		  At centre of the corresponding


full torus

Usage:- The belly plate ropes.

Notes:- None needed

     Half Elliptical Torus




Filename:- 		  gep_half_ellip_torus.for


Data Words:- 		  1 Relative volume


2 X semi-axis of the elliptical


cross-section


3 Z semi-axis of the elliptical


cross-section


4 Major radius to the centre of


the elliptical cross-section


Origin:- 		  At centre of the corresponding


full elliptical torus

Usage:- The rope grooves in the belly plates.

Notes:- None needed

     Half Square Torus




Filename:- 		  gep_half_square_torus.for


Data Words:- 		  1 Relative volume


2 X half length of the rectangular


cross-section


3 Z half length of the rectangular


cross-section


3 Major radius to the centre of


the rectangular cross-section


Origin:- 		  At centre of the corresponding


full square torus

Usage:- The rope grooves in the belly plates.

Notes:- None needed

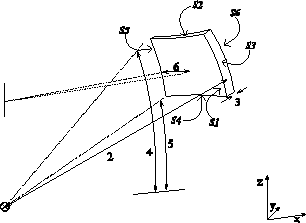

     Spherical Tile




Filename:- 		  gep_spherical_tile.for


Data Words:- 		  1 Relative volume


2 Radius to centre of tile


3 Half width of tile


4 TANGENT of angle between the


XY plane and top of the tile


5 TANGENT of angle between the


XY plane and bottom of tile


6 Angular half breadth of tile


in XY plane (in radians)


Origin:- 		  At centre of the sphere from


which the tile is cut

Usage:- The acrylic vessel tiles.

Notes:- The spherical tile is a section of a sphere between two constant azimuthal and two constant polar angles. the polar angles are taken from the XY plane, however, not from the Z axis.

     Frustum of Cone




Filename:- 		  gep_frustum_of_cone.for


Data Words:- 		  1 Relative volume


2 Radius of the top plane (S1)


3 Radius of the bottom plane (S3)


4 Half the height


Origin:- 		  At centre of the frustum

Usage:- Assorted calibration sources.

Notes:- The functionality of the code requires that the radius of the top plane be greather than the radius of the bottom plane i.e. $r_{1} > r_{2}$. The desired orientation of the primitive is achived with the rotation matrix.
